Multi functional composite smoke and steam purifier
Product number: 305CXH
Multi functional composite smoke and steam purifier
The Yimite multifunctional composite smoke and gas purification machine adopts advanced oil fume separation technology and odor removal technology to perform multi-stage purification treatment on the absorbed oil fume mixture gas according to the usage site and customer requirements, efficiently removing harmful components and pollutants in the smoke mixture gas, allowing the treated oil fume gas to return to the indoor environment without the need for external smoke exhaust pipes. The technology used includes using special honeycomb mesh plates and high-speed centrifugal fans to physically purify the oil fume, and using composite oil fume catalysis and photocatalyst technology to deeply purify the VOCs in the oil fume, effectively removing the odor and harmful substances of the oil fume.

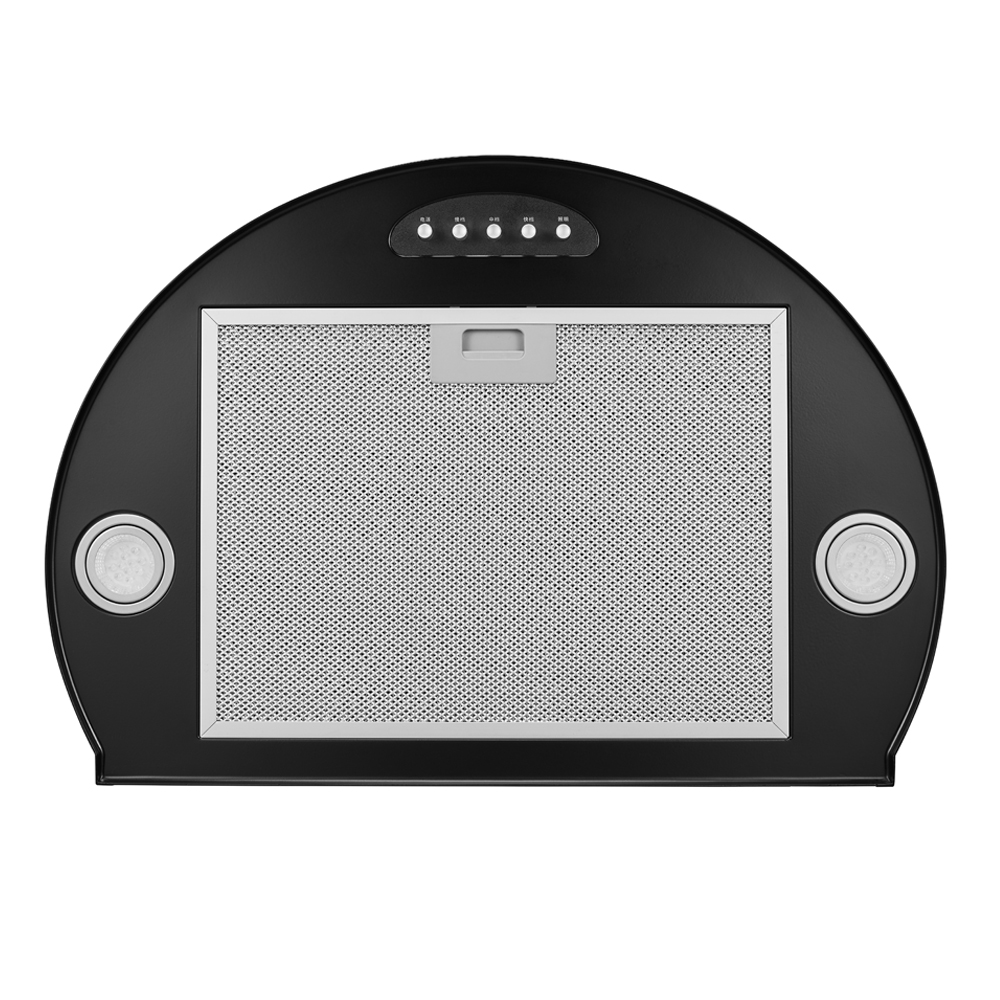

Internal circulation oil fume air purifier, ultra-thin body, top injection surface air outlet, optional for independent installation and embedded cabinet installation; Key switch control; Adopting a horizontal metal large wind turbine and a vortex intake system; High speed centrifugal oil throwing fan; Fourth level oil fume purification; Equipped with a silent Archimedes oil fume circulation pressure reducing return air chamber; Adopting a long-life LED dual lamp lighting system.
Available colors: black, white, silver gray.
Applicable location: Commercial and residential areas without external smoke exhaust pipes.
1 motor |
1 piece |
Input power | 220W |
Spotlight power | 2 * 1.5W |
wind pressure | >320Pa |
Oil fume air purification capacity | 800m3/h |
noise | ≤ 50dB |
External dimensions | 600 * 420 * 240mm |
