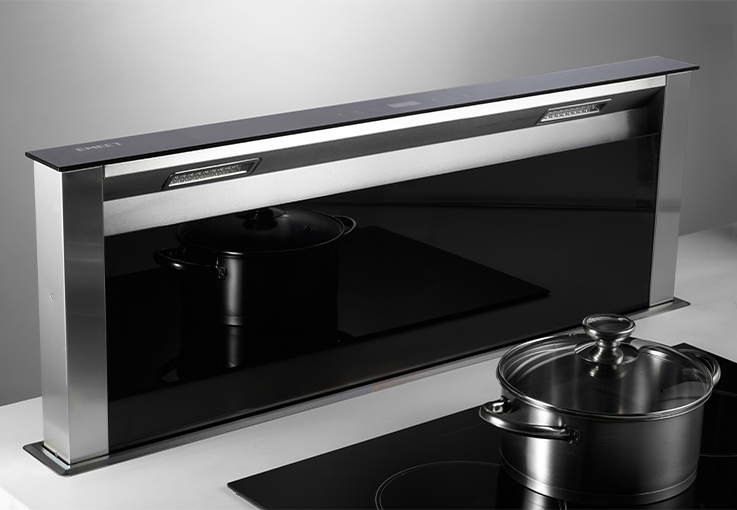

Integrated Cooker Hood—383D100BP
The cooker hood is embedded in the countertop. It can be raised when in use and lowered to hide in the cabinet when not in use, expanding the kitchen space. It is simple yet sophisticated, creating a new aesthetic for modern smart kitchens.
1. The automatic lifting range hood is embedded and installed on the countertop and hidden inside the cabinet.
2. The exquisite stainless steel body can be optionally equipped with a black microcrystalline glass hood or a white glass hood.
3. It is equipped with an anti-pinch hand protection system and a child lock double insurance, making it safer to use.
4. The S-shaped oil fume separation system makes it more environmentally friendly to use.
5. The ultra-quiet fan is equipped with an overheat and overvoltage protection system.
6. The intelligent wave-to-operate switch makes the operation more convenient.
7. The fan has an intelligent self-cleaning function, making the maintenance simpler.
8. The DC frequency conversion fan system features large suction power, low noise, energy conservation and power saving.
9. The humanized delay design makes it more convenient to use.
10. It offers the choice of two working modes, external exhaust or internal circulation, meeting the multi-scenario needs of customers.
| Motor | 2 pieces |
| Input power | 260W |
| Power of the spotlights | 21.5W |
| Diameter of the air outlet | 172mm |
| Peak air volume | 20m³/minute |
| Peak air pressure | >950Pa |
| Noise (sound pressure level) | ≤52dB(A) |
| External dimensions (when extended) | 70080*338mm |
